Six Types and Structure of Fan Coil Units

Fan coil units are primarily used in central air conditioning systems to continuously or intermittently supply air at a specific temperature difference, maintaining thermal and humidity balance while meeting room temperature and humidity requirements.

Fan coil units typically fall into six categories, offering flexible and convenient selection that can be customized to meet specific user requirements.

Cassette concealed; Cassette exposed; Floor-standing concealed; Floor-standing exposed; 8-way cassette; Wall-mounted.

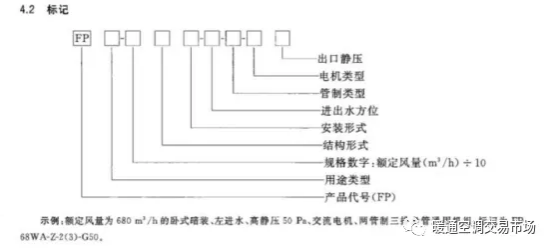

In accordance with GB/T19232-2019 "Fan Coil Units":

Airflow range: 340–2380m3/h, cooling capacity range: 2-19 kW.

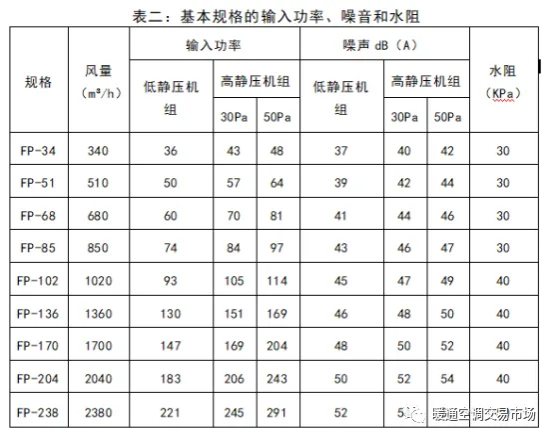

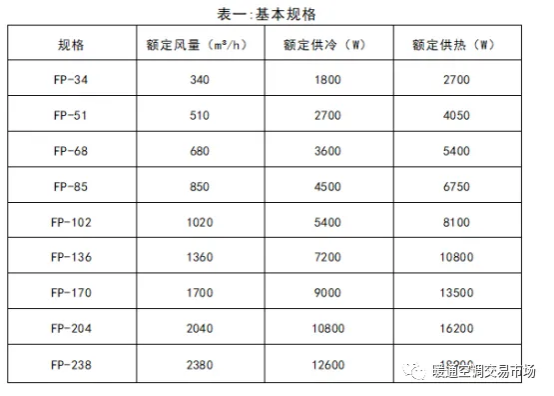

Basic Specifications and Requirements:

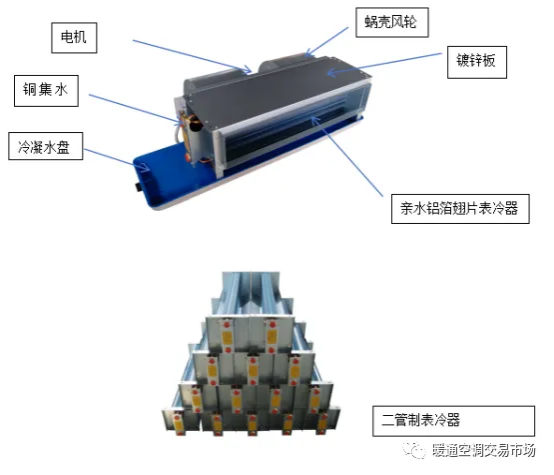

Fan Coil Unit Structure:

Fan coil units are widely used in hotels, apartments, villas, office buildings, hospitals, and other facilities.
